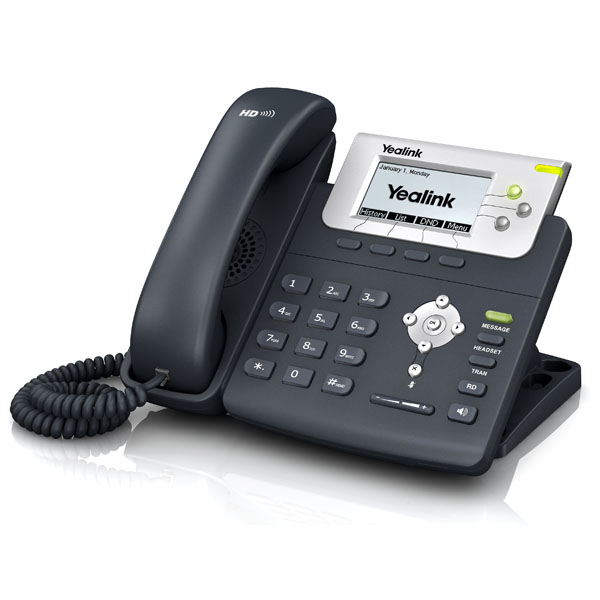

Description

Features
> Yealink HD Voice
> 132×64-pixel graphical LCD
> Two-port 10/100 Ethernet Switch
> PoE support
> Up to 3 SIP accounts
> Headset support
> Wall mountable
> Simple, flexible and secure
provisioning options

Specification
Audio Features
> HD voice: HD handset, HD speaker
> Wideband codec: G.722
> Narrowband codec: G.711(A/μ), G.723.1, G.729AB,
G.726, iLBC
> DTMF: In-band, Out-of-band(RFC 2833) and SIP
INFO
> Full-duplex hands-free speakerphone with AEC
> VAD, CNG, AEC, PLC, AJB, AGC

Phone Features
> 3 SIP accounts
> Call hold, mute, DND
> One-touch speed dial, hotline
> Call forward, call waiting, call transfer
> Group listening, SMS
> Redial, call return, auto answer
> Local 3-way conferencing
> Direct IP call without SIP proxy
> Ring tone selection/import/delete
> Set date time manually or automatically
> Dial plan
> XML Browser, Action URL/URI
> RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Directory
> Loal phonebook up to 1000 entries
> Black list
> XML/LDAP remote phonebook
> Intelligent search method
> Phonebook search/import/export
> Call history: dialed/received/missed/forwarded

IP-PBX Features
> Busy Lamp Field (BLF)
> Bridged Line Apperance(BLA)
> Anonymous call, anonymous call rejection
> Hot-desking, emergency call
> Message Waiting Indicator (MWI)
> Voice mail, call park, call pickup
> Intercom, paging, music on hold
> Call completion, call recording

Display and Indicator
> 132×64-pixel graphical LCD with backlight
> LED for call and message waiting indication
> One-color (green) illuminated LEDs for
line status information
> Intuitive user interface with icons and soft keys
> National language selection
> Caller ID with name, number

Feature keys
> 3 line keys with LED
> 5 features keys: message, headset, redial, tran,
hands-free speakerphone
> 6 navigation keys
> Volume control keys

Interface
> 2xRJ45 10/100M Ethernet ports
>Power over Ethernet (IEEE 802.3af), class 2
> 1xRJ9 (4P4C) handset port
> 1xRJ9 (4P4C) headset port

Other Physical Features
> Wall mountable
> External universal AC adapter (optional)：
AC 100~240V input and DC 5V/1.2A output
> Power consumption (PSU): 1.4-2.0W
> Power consumption (PoE): 2.1-2.9W
> Dimension(W*D*H*T):
209mm*188mm*150mm*41mm
> Operating humidity: 10~95%
> Operating temperature: -10~50°C

Management
> Configuration: browser/phone/auto-provision
> Auto provision via FTP/TFTP/HTTP/HTTPS
for mass deploy
> Auto-provision with PnP
> Zero-sp-touch, TR-069
> Reset to factory, reboot
> Package tracing export, system log

Package Features
> Qty/CTN: 10 PCS
> N.W/CTN: 11.8 kg
> G.W/CTN: 13.0 kg
> Giftbox size: 220mm*241mm*105mm
> Carton Meas: 560mm*460mm*250mm

Network and Security
> SIP v1 (RFC2543), v2 (RFC3261)
> NAT transverse: STUN mode
> Proxy mode and peer-to-peer SIP link mode
> IP assignment: static/DHCP
> HTTP/HTTPS web server
> Time and date synchronization using SNTP
> UDP/TCP/DNS-SRV(RFC 3263)
> QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS
DSCP
> SRTP for voice
> Transport Layer Security (TLS)
> HTTPS certificate manager
> AES encryption for configuration file
> Digest authentication using MD5/MD5-sess
> OpenVPN, IEEE802.1X
> IPv6
